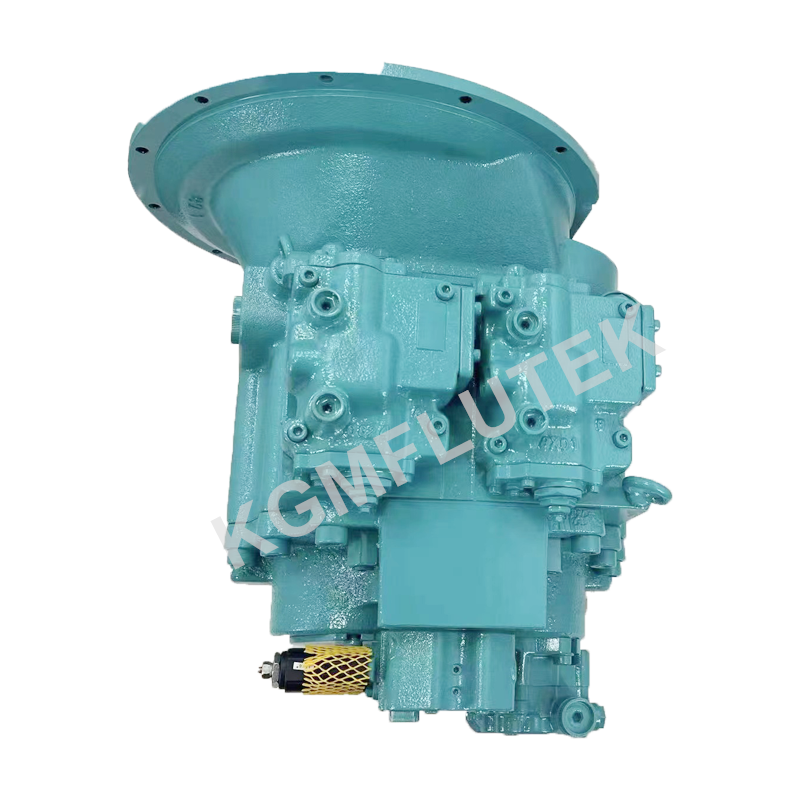

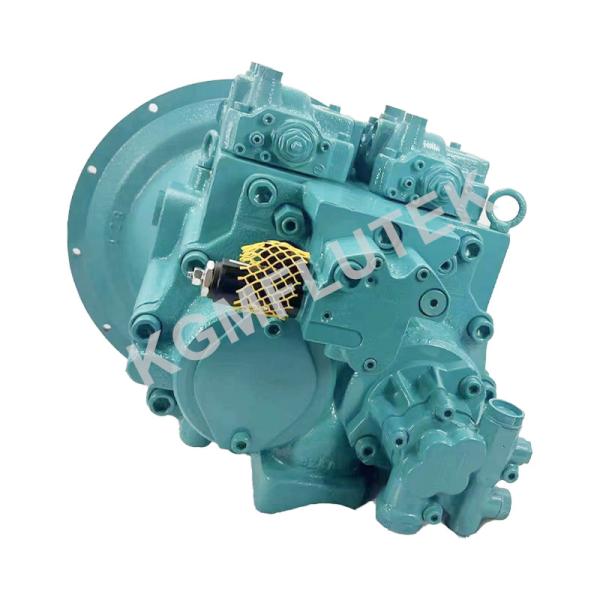

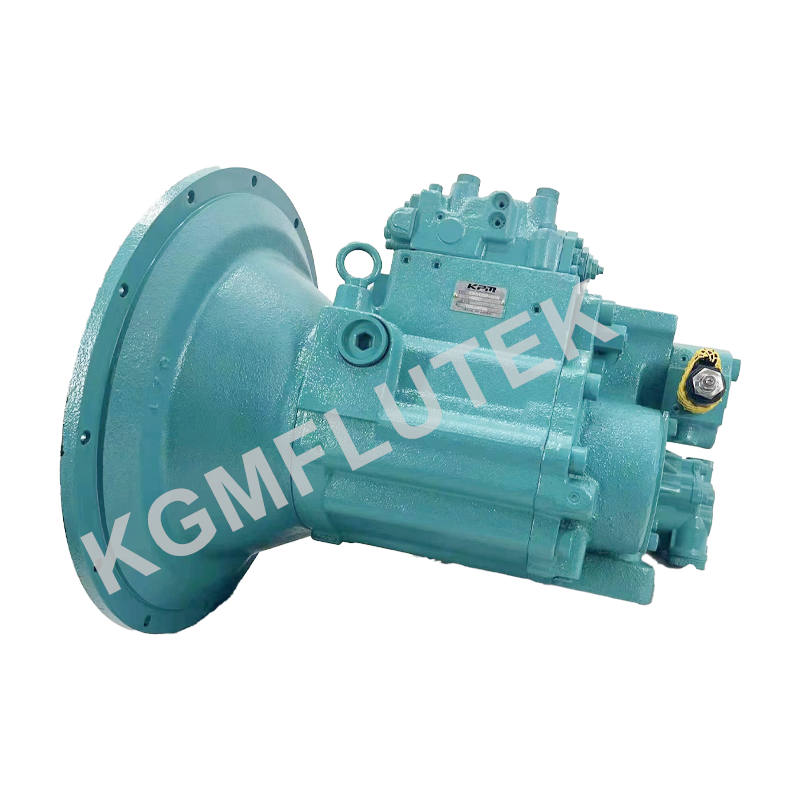

Kawasaki K3V Hydraulic Hydraulic Pump K3V112DP-111R-9R0D For
Excavator SK235R
K3V112 Hydraulic Pump Spare Parts
We Provide Hydraulic Pump Spare Parts for K3V63, K3V112, K3V140,
K3V180, K3V280. Spare parts include: Rotary Group, Drive Shaft,
Support, Swash Plate, Thrust Plate, Retainer Plate, Set Plate, Ball
Guide, Piston Shoe, Cylinder Block, Valve Plate and other parts.
Yunki is your aftermarket solutions partner for Kawasaki
replacement piston pump parts. Precision piston pump parts can
totally interchange with original Kawasaki, same specification and
duration. 100% Compatible With Original Kawasaki, Good Quality
Piston Pump Parts And More Cost Effective Price.
| Item No. | Name & Description | QTY (pcs) | Remark |
| 1 | K3V112 DRIVE SHAFT | 1 | SHAFT |
| 2 | K3V112 SUPPORT | 1 | |
| 3 | K3V112 SWASH PLATE | 1 | YOKE |
| 4 | K3V112 THRUST PLATE | 1 | SHOE PLATE |
| 5 | K3V112 RETAINER PLATE | 1 | SET PLATE |
| 6 | K3V112 BALL GUIDE | 1 | |
| 7 | K3V112 COIL SPRING | 9 | |
| 8 | K3V112 PISTON SHOE | 9 | PISTONS |
| 9 | K3V112 WASHER | 1 | |
| 10 | K3V112 CYLINDER BLOCK | 1 | BARREL |
| 11 | K3V112 VALVE PLATE | 1 | PORT PLATE |
Features
K3V series: K3V63, K3V112, K3V140, K3V180, K3V280
1. With new technology the K3V series has realized higher power
density.
2. K3V series can cope with enlargement of displacement despite the
same installation dimensions and regulator variations as K3V’s.
3. K3V series pumps have realized higher reliability and long life
so as to meet requirement of larger torque.
| Model | K3V63 | K3V112 | K3V140 | K3V180 | K3V280 |
| Displacement /cm3 | 63 | 112 | 140 | 180 | 280 |
| Pressure MPa (kgf/cm2) | Rated | 34.3 (350) |
| Peak | 39.2 (400) |
| Speed /min-1 | Max.for self priming | 2,650 | 2,360 | 2,150 | 1,950 | 1,600 |
| Max | 3,250 | 2,700 | 2,500 | 2,300 | 2,300 |
HYDRAULIC MAIN PUMP MODELS
| K3V63DT-1RCR-9N03-1 | K3V112DT-112R-9C02 | K3V63DTP15LR-9C17-V |
| K3V63DT-1R0R-9NOT | K3V112DT-1CGR-HNOP | K7V63DTP159R-9Y2C-AVD |
| K3V63DT-1Y0R-9NOT | K3V112DT-1CGR-HNOD(V) | K3V112DTP16AR-9N49-Z |
| K3V63DT-1ZDR-9N0T-ZV | K3V112DT-1CGR-HNOC | K3V112DT-1G4R-9C12-1 |
| K3V63DT-1R7R-2N02-1V | K3V63DT-12MR-9N2D | K5V160DT-1X4R-9N4A-10AV |
| K3V112DT-1RCR-9N09 | K3V140DT-1A2R-9N09 | K3V112DTP1F9R-9Y14-HV |
| K3V112DT-1XER-9N24-2 | K3V140DT-1UGR-HN1P | K5V140DTP-9Y00 |
| K3V112DT-1XDR-9N24-ZV | K3V140DT-1UGR-HN02 | K5V140DTP1G9R-9N0A-V |
| K3V112DT-1XER-9N2A-2 | K5V140DTP-1D9R-9N01 | K5V160DTP1FLR-9Y04-HV |
| K3V140DT-1RCR-9N19 | K5V140DTP-1N9R-9NO7-V | K3V180DTP-9N6A |
| K3V140DT-1JER-9N04-1 | K3V180DT-1PGR-HLOP | K3V180DTP-9Y0A |
| K3V180DT-1PCR-9N46 | K3V180DT-1PGR-HNOP | K3V280DTH131R-9N24-V |
| K3V180DTH-1POR-9N0S | K3V180DT-1PGR-HN1P | K3V180DTP1FAR-9Y0A-V |
| K3V180DT-1PER-9N56 | K3V180DT-1PGR-HNOZ | K3V112DTP-9TCM |
| K3V180DTH-1POR-9NOB | K3V180DTH-1POR-HNOV | K3V112DTP-9T8L |
| K3V180DT-152R-9N05-AHV | K3V180DTH-1POR-HNIV | K3V112DTP-0E11 |
| K5V80DT-1 PDR-9N0Y-ZV | K3V180DTH-1POR-HN2V | K5V140DTP-9T1L |
| K5V80DT-1PDR-9N0J-ZV | K5V140DTP-177R-9N19 | K5V140DTP-0E01 |
| K5V200DTP180R-9N8X-V | K3V112DTP1Y9R-9P59-AV | K3V140DT-9TCM |
We offer wide range of hydraulic pumps that can suit to excavator
such as Komatsu, Caterpillar, Hitachi, Kobelco, Mitsubishi,
Hyundai, Volvo.
All of our Hydraulic Pumps are packed well in wooden case.
