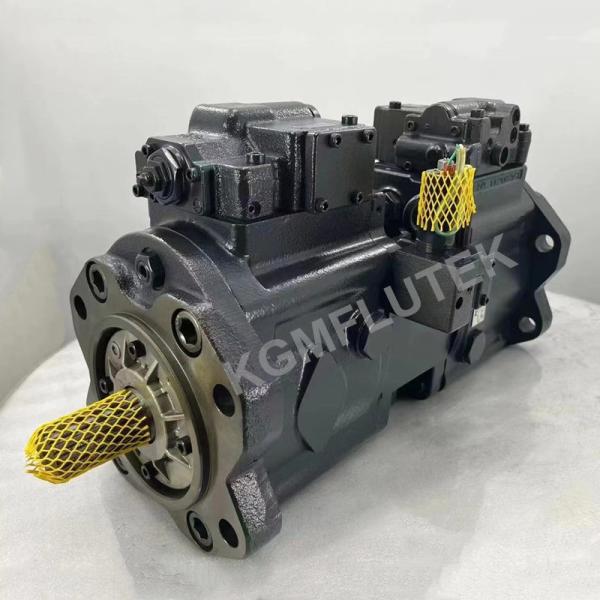

K3V112DT Hydraulic Pump Spare Parts
We offer hydraulic pump spare parts for K3V112DT. Spare parts
include: Drive Shaft, Support, Swash Plate, Set Plate, Ball Guide,
Coil spring, Piston Shoe, Cylinder Block, Valve Plate and other
parts. Yunki is your aftermarket solutions partner for Kawasaki
replacement piston pump parts. Precision piston pump parts can
totally interchange with original Kawasaki, same specification and
duration.
| Item No. | Name & Description | QTY (pcs) | Remark |
| 1 | K3V112DT DRIVE SHAFT | 1 | SHAFT |
| 2 | K3V112DT SUPPORT | 1 | |
| 3 | K3V112DT SWASH PLATE | 1 | YOKE |
| 4 | K3V112DT THRUST PLATE | 1 | SHOE PLATE |
| 5 | K3V112DT RETAINER PLATE | 1 | SET PLATE |
| 6 | K3V112DT BALL GUIDE | 1 | |
| 7 | K3V112DT COIL SPRING | 9 | |
| 8 | K3V112DT PISTON SHOE | 9 | PISTONS |
| 9 | K3V112DT WASHER | 1 | |
| 10 | K3V112DT CYLINDER BLOCK | 1 | BARREL |
| 11 | K3V112DT VALVE PLATE | 1 | PORT PLATE |
Features
K3V series: K3V63, K3V112, K3V140, K3V180, K3V280
1. With new technology the K3V series has realized higher power
density.
2. K3V series can cope with enlargement of displacement despite the
same installation dimensions and regulator variations as K3V’s.
3. K3V series pumps have realized higher reliability and long life
so as to meet requirement of larger torque.
| Model | K3V63 | K3V112 | K3V140 | K3V180 | K3V280 |
| Displacement /cm3 | 63 | 112 | 140 | 180 | 280 |
| Pressure MPa (kgf/cm2) | Rated | 34.3 (350) |
| Peak | 39.2 (400) |
| Speed /min-1 | Max.for self priming | 2,650 | 2,360 | 2,150 | 1,950 | 1,600 |
| Max | 3,250 | 2,700 | 2,500 | 2,300 | 2,300
|
EXCAVATOR MODELS
HITACHI: EX120-5 EX100-3 EX150LC-5 EX160LC-5 EX200-3 EX200LC-3
EX200H-3 EX220-5 EX220LC-5 EX230H-5 EX270-5 EX270LC-5 EX280H-5
EX300-3 EX300LC-3 EX300H-3 EX300LCH-3 EX300-3C EX300LC-3C EX310H-3C
EX400-3 EX400LC-3 EX400H-3 EX400-3C EX400LC-3C EX450H-3C EX400-5
EX400LC-5 EX450LC-5 EX450H-5 ZAXIS450 ZAXIS450LC ZAXIS450H EX550-3
EX550LC-3 EX600H-3 EX750-5 EX1100-3 EX1200-5 EX550-5 EX550LC-5
EX600H-5
VOLVO: EC160B EC180B EC135B EC130 EC130C EC140 EC140B EC150 EC150C
EC160 EC210 EC210B EC200 EC210F EC210BF EC230 EC230B EC240 EC240B
EC280 EC290 EC290B EC300 EC330B EC340 EC360 EC360B EC390 EC420
EC450 EC460 EC460B EC620 EC650 EC700B
DOOSAN: DH55 DX60 DH60-7 DX75 DX80 DX120 DX150LC DH150LC-7 DH215-9 DH215-9E
DH220LC-9E DH225LC-9 DX260LC DX300LC DH300LC-7 DX345LC DH370LC-9
DX380LC DX420LC DH420LC-7 DX500LC DH500LC-7 DX700LC
HYUNDAI: R140LC-7 R140LC-7A R140LC-9 R145CR-9 R160LC-3 R160LC-7
R160LC-7A R160LC-9 R180LC-7 R180LC-7A R180LC-9 R210LC-7 R210LC-7A
R210LC-7H R210LC-9 R210NLC-7 R210NLC-7A R210NLC-9 R235LCR-9
R250LC-7 R250LC-7A R250LC-9 R290LC-7 R290LC-7A R290LC-7H R290LC-9
R300LC-7 R305LC-7 R320LC-7 R320LC-7A R320LC-9 R360LC-7 R360LC-7A
R360LC-9 R370LC-7 R450LC-7 R450LC-7A R480LC-9 R500LC-7 R500LC-7A
R520LC-9 R800LC-7A
KOBELCO: SK07N2, SK07-7, SK04-2, SK09, SK12, SK40, SK60, SK115,
SK120-1/2/3, SK100-2/3, SK160, SK140, SK140-8, SK160 MARK 1V,
SK200, SK200-3/5, SK200-6, SK200-8S, SK210LC-8, SK220, SK220-10,
SK230-6, SK230-6, SK235SR, SK250-6E, SK260-8, SK250-8, SK250-10,
SK260-10, SK260LC-8, SK300, SK320, SK330-6, SK330-8, SK350-6,
SK350LC-8, SK380D, SK450-1, SK450-6, SK450-8, SK460-8, SK480-8
We offer wide range of hydraulic pumps that can suit to excavator
such as Komatsu, Caterpillar, Hitachi, Kobelco, Mitsubishi,
Hyundai, Volvo.
All of our Hydraulic Pumps are packed well in wooden case.
