Alloy Copper Cylinder Block Valve Plate For K3SP36 Hydraulic Pump

Product Categories

Guangzhou Yunki Hydraulic Mechanical Co., Ltd

Contact Now

Alloy Copper Cylinder Block Valve Plate For K3SP36 Hydraulic Pump

Ask Lasest Price
Brand Name :	KAWASAKI KPM
Model Number :	K3SP36
Certification :	ISO
Payment Terms :	T/T, Western Union
Supply Ability :	1000sets per month
Delivery Time :	1-3 days

Add to Cart

Product Details
Company Profile

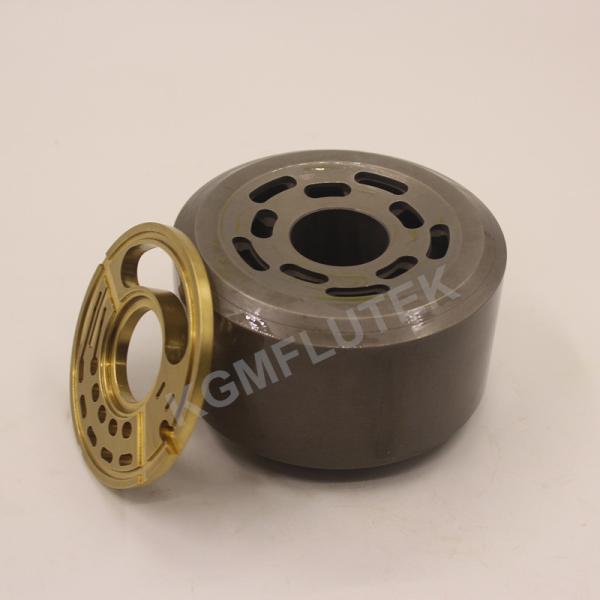

Alloy Copper Cylinder Block Valve Plate For K3SP36 Hydraulic Pump

Cylinder Block And Valve Plate K3V180 K5V200 Excavator Hydraulic Parts

Product Details

Type	Hydraulic parts
Part Name	Cylinder Block Valve Plate
Pump Model	K3SP36
Brand Name	KPM
Place of Origin	Japan
Application	Crawler Excavator
Material	Alloy copper+carbon steel
Surface technics	Precision grinding and polishing
Usage	Hydraulic Machinery Industry, Construction Machinery Parts
Product Service	Checking according to customers' part number
Delivery Time	1-3 days after we received the payment
Shipping way	By Express: DHL Fedex TNT EMS UPS or By Air / Sea
Payment	T/T, West Union, Alipay
MOQ	1 set
Packing	1)Original packing
	2)Neutral package & wooden package
	3)Carton package+pallet
	4)Wooden package+pallet
	5)As customer request
Guarantee: We will check the products and send detail pictures to buyer to confirm before shipping.

K3SP36C Hydraulic Pump Spare Parts

Item No.	Name & Description	QTY (pcs)
1	K3SP36C DRIVE SHAFT	2
2	K3SP36C BALL OF SWASH PLATE	2
3	K3SP36C SUPPORT	1
4	K3SP36C SWASH PLATE	1
5	K3SP36C TILTING PIN	1
6	K3SP36C SERVO PISTON	1
7	K3SP36C PISTON SHOE	10
8	K3SP36C SET PLATE	1
9	K3SP36C BALL GUIDE	1
10	K3SP36C COIL SPRING	10
11	K3SP36C CYLINDER BLOCK	1
12	K3SP36C VALVE PLATE	1

Features

The K3SP36C swash plate variable piston pump for open hydraulic system, the total power control mode, used in construction machinery, especially suitable for 6 to 8 tons excavators. The piston pump has high pressure, compact design, light weight, wide range of applications, convenient installation, low noise and easy maintenance features.

Model	K3SP36C
Displacement	36x2 mL/r
Rotation(viewed from shaft end)	R:clockwise L:counter clockwise
Rated speed	2000 r/min
Max. speed	2300 r/min
Inlet pressure	0.05~0.2 MPa
Rated pressure	28 MPa
Max. pressure	30 MPa
Recommend oil	L-HM46(summer) L-HM32(winter)
Housing pressure	≤0.15 MPa
Gear pump displ.	9 mL/r
Max. working pressure for gear pump	5 MPa

ADVANTAGES

1. Completely inerchangeable with original

2. This pump is for open loop hydraulic system

3. The total power control mode

4. Used in construction machinery, especially suitable for 6 to 8 tons excavators

5. The flow can be continuously adjusted by mechanical adjustment of the angle of the swash plate

6. It features high pressure,compact structure,light weight,convenient installation,low noise,and easy maintenance
