K7V180 Hydraulic Pump Spare Parts
We offer hydraulic pump spare parts, range from K7V63, K7V125,
K7V140, K7V180. Spare parts include: Rotary Group, Drive Shaft,
Support, Swash Plate, Thrust Plate, Retainer Plate, Ball Guide,
Piston Shoe, Cylinder Block, Valve Plate and other parts. Yunki is
your aftermarket solutions partner for Kawasaki replacement piston
pump parts. Precision piston pump parts can totally interchange
with original Kawasaki, same specification and duration.
| Item No. | Name & Description | QTY (pcs) |
| 1 | K7V180 DRIVE SHAFT | 1 |
| 2 | K7V180 SUPPORT | 1 |
| 3 | K7V180 SWASH PLATE | 1 |
| 4 | K7V180 THRUST PLATE | 1 |
| 5 | K7V180 RETAINER PLATE | 1 |
| 6 | K7V180 BALL GUIDE | 1 |
| 7 | K7V180 COIL SPRING | 9 |
| 8 | K7V180 PISTON SHOE | 9 |
| 9 | K7V180 CYLINDER BLOCK | 1 |
| 10 | K7V180 VALVE PLATE | 1 |
Features
K7V series: K7V63, K7V125, K7V140, K7V180

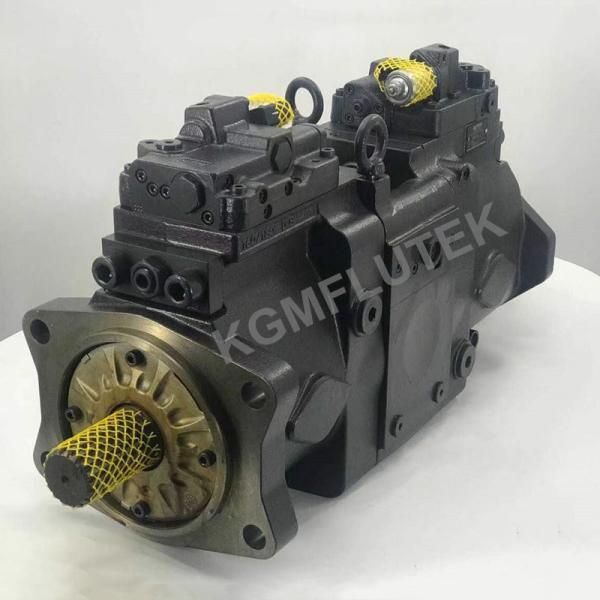

The K7V series are variable displacement axial piston pumps of
swash plate design, suitable for use in mobile applications such as
Excavators, Cranes, etc. With the Kawasaki's latest technologies
for improving efficiency and lowering noise, they achieve the
world's top-level pump efficiency and low noise which contribute to
energy saving on applications and comfortable working environment.
A long life is obtained by adopting large capacity of bearing and
thicker shaft which reduces the load on the edge of bearing
rollers. Power density is 1.5 times higher than K3V series.
| Model | K7V63 | K7V125 | K7V140 | K7V160 | K7V180 |
| Displacement (cc/rev) | 63 | 130 | 140 | 160 | 180 |
| Pressure (bar) | Rated | 350 | 350 | 350 | 350 | 350 |
| Peak | 400 | 400 | 400 | 400 | 400 |
| Speed (min-1) | Max. Self-Priming | 2650 | 2360 | 2200 | 2100 | 2000 |
| Max. | 3250 | 2700 | 2500 | 2350 | 2300 |
SPARE PARTS FOR XCMG EXCAVATOR MODELS
XCMG : XE55D XE60D XE75D XE80D XE85C XE135D XE150D XE200C XE215
XE225 XE235 XE260 XE270 XE335 XE370 XE470 XE490 XE500
We offer wide range of hydraulic pumps that can suit to excavator
such as Komatsu, Caterpillar, Hitachi, Kobelco, Mitsubishi,
Hyundai, Volvo.
All of our Hydraulic Pumps are packed well in wooden case.
