K5V80 Hydraulic Pump Spare Parts
We offer Kawasaki K5V80 hydraulic pump parts, range from K5V80,
K5V140, K5V160, K5V200, K5V212. Spare parts include: Rotary Group,
Drive Shaft, Support, Swash Plate, Yoke, Thrust Plate, Shoe Plate,
Retainer Plate, Set Plate, Ball Guide, Piston Shoe, Pistons,
Cylinder Block, Barrel, Valve Plate, Port Plate and other parts.
Yunki is your aftermarket solutions partner for Kawasaki
replacement piston pump parts. Precision piston pump parts can
totally interchange with original Kawasaki, same specification and
duration.
| Item No. | Name & Description | QTY (pcs) |
| 1 | K5V80 DRIVE SHAFT/SHAFT | 1 |
| 2 | K5V80 SUPPORT | 1 |
| 3 | K5V80 SWASH PLATE/YOKE | 1 |
| 4 | K5V80 THRUST PLATE/SHOE PLATE | 1 |
| 5 | K5V80 RETAINER PLATE/SET PLATE | 1 |
| 6 | K5V80 BALL GUIDE | 1 |
| 7 | K5V80 COIL SPRING | 1 |
| 8 | K5V80 PISTON SHOE/PISTONS | 9 |
| 9 | K5V80 WASHER | 1 |
| 10 | K5V80 CYLINDER BLOCK/BARREL | 1 |
| 11 | K5V80 VALVE PLATE/PORT PLATE | 1 |
Features
K5V series: K5V80, K5V140, K5V160, K5V200, K5V212
The K5V series are variable displacement axial piston pumps of
swash plate design, suitable for use in mobile applications such as
Excavators, Cranes, etc. Various rotary group layouts, tandem type
with PTO and parallel type are available to respond to
applications. There are high reliability and more than 25 years of
experience in the on mobile applications.
| Model | K5V80 | K5V140 | K5V160 | K5V200 | K5V212 |
|---|
| Displacement (cm3) | 80 | 140 | 160 | 200 | 214 | | Pressure (MPa) | Rated | 34.3 | | Peak | 39.2 | | Max Self Priming Speed (min-1) | 2,460 | 2,160 | 2,000
[2,350]*1 | 1,850
[2,200]*1 | 2,000*1 | | Structure | Single | ◯ | ◯ | ◯ | ◯ | - | | Tandem | ◯ | ◯ | ◯ | ◯ | - | | Parallel | | - | ◯ | ◯ | ◯
|
|
VOLVO Excavator Hydraulic Pump Models
| VOLVO | 14508164 | 1142-06230 | K3V63DT-1RCR-9N03-1 |
| 14508164 | 14500380 | K3V63DT-1R0R-9NOT |
| 14510170 | 14508164 | K3V63DT-1Y0R-9NOT |
| 14520050 | 14512271 | K3V63DT-1ZDR-9N0T-ZV |
| 14520750 | 14516405 | K3V112DT-1RCR-9N09 |
| 14526609 | 14522561 | K3V112DT-1XER-9N24-2 |
| 14531300 | 14524052 | K3V112DT-1XDR-9N24-ZV |
| 14531591 | 14526609 | K3V112DT-1XER-9N2A-2 |
| 14531594 | 14531412 | K3V140DT-1RCR-9N19 |
| 14533644 | 14531857 | K3V140DT-1JER-9N04-1 |
| 14612484 | 14549798 | K3V180DT-1PCR-9N46 |
| 14618624 | 14612484 | K3V180DTH-1POR-9N0S |
| 1040-74390 | 14618624 | K3V180DT-1PER-9N56 |
| 1042-02191A | 14621492 | K3V180DTH-1POR-9NOB |
| 1042-07700 | 14623786 | K3V180DT-152R-9N05-AHV |
| 1142-00010 | 7220-00601 | K5V80DT-1 PDR-9N0Y-ZV |
| 1142-00530 | 1142-00900 | K5V80DT-1PDR-9N0J-ZV |

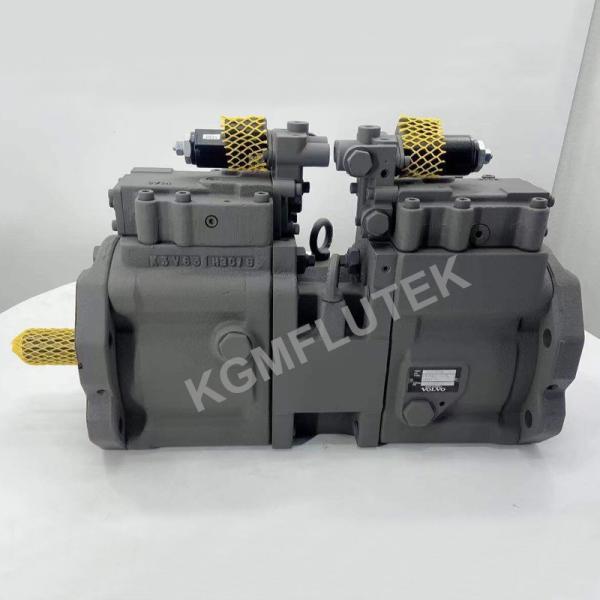

| 14574463 | 14676708 | K5V80DT-1V9L-1E01-V |
| 1142-00660 | 1142-05460 | K5V200DTP180R-9N8X-V |
We offer wide range of hydraulic pumps that can suit to excavator
such as Komatsu, Caterpillar, Hitachi, Kobelco, Mitsubishi,
Hyundai, Volvo.
All of our Hydraulic Pumps are packed well in wooden case.
